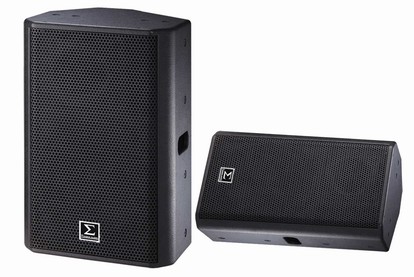

D 箱体使用加厚防水黑金刚砂耐磨树脂漆，由18mm厚的白桦木夹板组成，箱体前方由1.5mm厚金属铁网进行保护，并配备各种标准支架插孔及符合人体工学的把手，令搬运和安装显得格外容易，箱体还配备M8吊装螺栓，保证吊装的安全性，并可以任意调节音箱吊装方位。不对称箱体设计可以令D系列作舞台反送，并更使音箱显得大气出众，显示出它特有的音色，内部单元是经时间老化实验，分频网络带电子保护电路，可以保证扬声器在恶劣的环境下长时间轻松自如的稳定工作 。

D series cabinet looses waterproof black emery wear-resisting lacquers, by 18mm thick composed, cabinet dock-green splint by 1.5 mm thick metal ahead of protection, and iron network with all kinds of standard bracket jacks and ergonomic handle, make handling and installation, cabinet appears easily is equipped with M8 lifting bolts, ensure the safety and lifting can adjust arbitrarily speakers hoisting position. Asymmetric cabinet design can make D series against send, and make stage more make speakers appear atmosphere outstanding, shows its peculiar tone, internal unit is the time aging experiment, with separate frequency network electronic protection circuit, can guarantee the speaker in poor conditions to long time relaxing stable job.

阻抗Impedance：8  Ohm

额定功率Long-term power（rms）：450W

峰值功率Peak Power Handling：800

频响Frequency response：50-20KHZ

灵敏度Sensitivity：98dB

低频Low：15INX1

高频High：3.5 INX1(75mm)

重量N.W：33KG

箱体尺寸Dimensions(WxHxD)：480X700X420mm
